MK1320A-500 (simple full-protection)CNC cylindrical grinder

MK1320A-500 (simple semi-protective) CNC cylindrical grinder with grinding machine dedicated control system,two-axis Taiwan high-precision ball screw, bearing support, fixed head frame, head frame frequency stepless speed control, Schneider Electric control. Machine tool with automatic compensation functions, external l um band compensation switch, safety emergency protection and other functions.

The machine has the advantages of high repeatability, high grinding stability, Iow surface roughness value, easy operation, easy to learn and easy to use, and easy to realize the advantages of automatic processing. It is widely used in outer cylindrical surface, conical surface, circular forming surface and more Grinding of Outer Parts of Stepped Shafts.

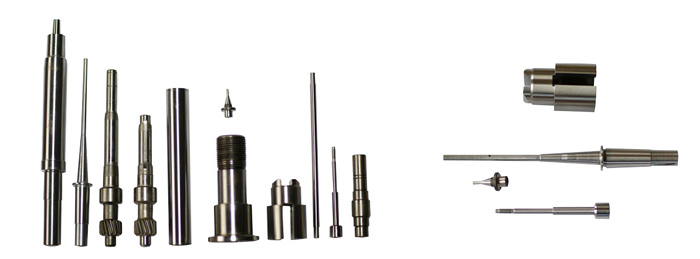

Pictures Of Processing Parts:

Technical Spec:

Maximum work piece diameter ∅135mm
Maximum work piece length 500mm
Grinding diameter range ∅8∼∅200mm
Max size of grinding wheel ∅400x∅203x(20-50)mm
Grinding wheel speed ≤35m/s
Grinding wheel motor power 4KW
Head motor power 1.1KW
Max weight of the workpiece ≤50kg
Length of movement of the table ≥680mm
Grinding wheel feed speed 0.01∼3000mm/min
Head carriage speed (stepless speed) 40 ∼500r/min
Head frame Mohs taper MS5
Tailstock sleeve travel 20mm
Tailstock Mohs taper MS4
Working accuracy roundness 1.5µm
Dimensional consistency 3µm/315mm
Surface roughness Ra0.2∼0.8µm
X-axis repeat positioning accuracy 1.5µm
Z-axis repeat positioning accuracy 4.0µm
Implementation of standards Q/320281BGF01-2016 GB/T4685-2007
Machine weight 2600kg
Machine dimensions (L x W x H) 2545x1490x1810mm
Standard Configuration
GSK986GS CNC Grinding Machine System
Backpack cabinet air conditioner
Magnetic filter cooling
Optional Configuration
FANUC 0i-F / G CNC Grinding Machine System
SIEMENS 828D CNC Grinding Machine System
ZY precision radial cylindrical instrument
ZY precision end face knife
External hydraulic station and hydraulic tailstock
