Warranty:
Control / Machine : 1 year.
2,150,000*
*Excluding Vat / Warranty may varies upon conditions of the contract.

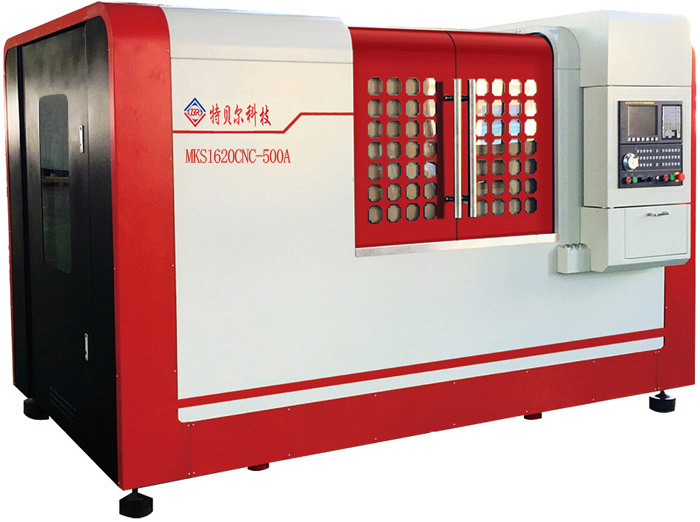

MKS1620CNC-500A (standard full protection) CNC end face cylindrical grinder

MKS1620CNC-500A (standard full protection) CNC end face cylindrical grinder with grinding machine dedicated control system, two-axis Taiwan high-precision ball screw, tilt 30 ° angle structure, electronic gear fit grinding, bearing support, fixed head frame , The first frame variable frequency stepless speed regulation, the overall liquid suspension precision static and dynamic pressure spindle, Schneider Electric control. Machine tool with automatic grinding wheel compensation and compensation functions, external 1um band compensation switch, safety emergency protection and other functions.

The machine has the advantages of high repeatability, high grinding stability, low surface roughness value, easy operation, easy to learn and easy to achieve the advantages of automatic processing; widely used in the ene, cylindrical or molding surface grinding cylindrical cone Surface and other parts of the efficient grinding processing.

Pictures Of Processing Parts:

Technical Spec:

Maximum work piece diameter ∅135mm
Maximum work piece length 500mm
Grinding diameter range ∅8∼∅200mm
Max size of grinding wheel ∅400x∅203x(20-50)mm
Grinding wheel speed ≤60m/s
Grinding wheel motor power 7.5KW
Head motor power 1.1KW
Max weight of the workpiece ≤50kg
Length of movement of the table ≥680mm
Grinding wheel feed speed 0.01∼3000mm/min
Head carriage speed (stepless speed) 40∼500r/min
Head frame Mohs taper MS5
Tailstock sleeve travel 20mm
Tailstock Mohs taper MS4
Working accuracy roundness 1.5µm
Dimensional consistency 3µm/315mm
Surface roughness Ra0.2∼0.8µm
X-axis repeat positioning accuracy 1.5µm
Z-axis repeat positioning accuracy 2.0µm
Implementation of standards Q/320281BGF01-2016 GB/T4685-2007
Machine weight 4100kg
Machine dimensions (L x W x H) 3000x2050x1900mm
Standard Configuration
GSK986GS CNC Grinding Machine System
Backpack cabinet air conditioner
Magnetic filter cooling
Energy-saving electronic oil mist machine
Liquid Suspension Static Pressure Spindle
3.5KW Spindle Oil Cooler
ZY precision end face knife
External hydraulic station and foot switch
Optional Configuration
FANUC 0i-F / G CNC Grinding Machine System
SIEMENS 828D CNC Grinding Machine System
ZY precision radial cylindrical instrument
Axial floating length measuring instrument
